Chapter 8. Tools & Accessories
Installation tools, accessories, spare parts list, and procurement guidance for road video surveillance systems
A successful road surveillance installation depends not only on the core equipment but also on the correct selection and availability of installation tools, accessories, and spare parts. Inadequate tooling leads to poor-quality terminations, damaged cables, and incorrect mounting, all of which reduce system reliability and increase maintenance costs. A well-planned accessories and spare parts inventory ensures that maintenance teams can respond quickly to equipment failures without waiting for procurement cycles.
8.1 Accessories & Spare Parts Visual List
The following diagram presents the complete accessories and spare parts list for a road video surveillance system in a visual catalog format. Each item is shown with its part number reference and unit of supply. This list should be used as the basis for the project bill of materials and the initial spare parts inventory.

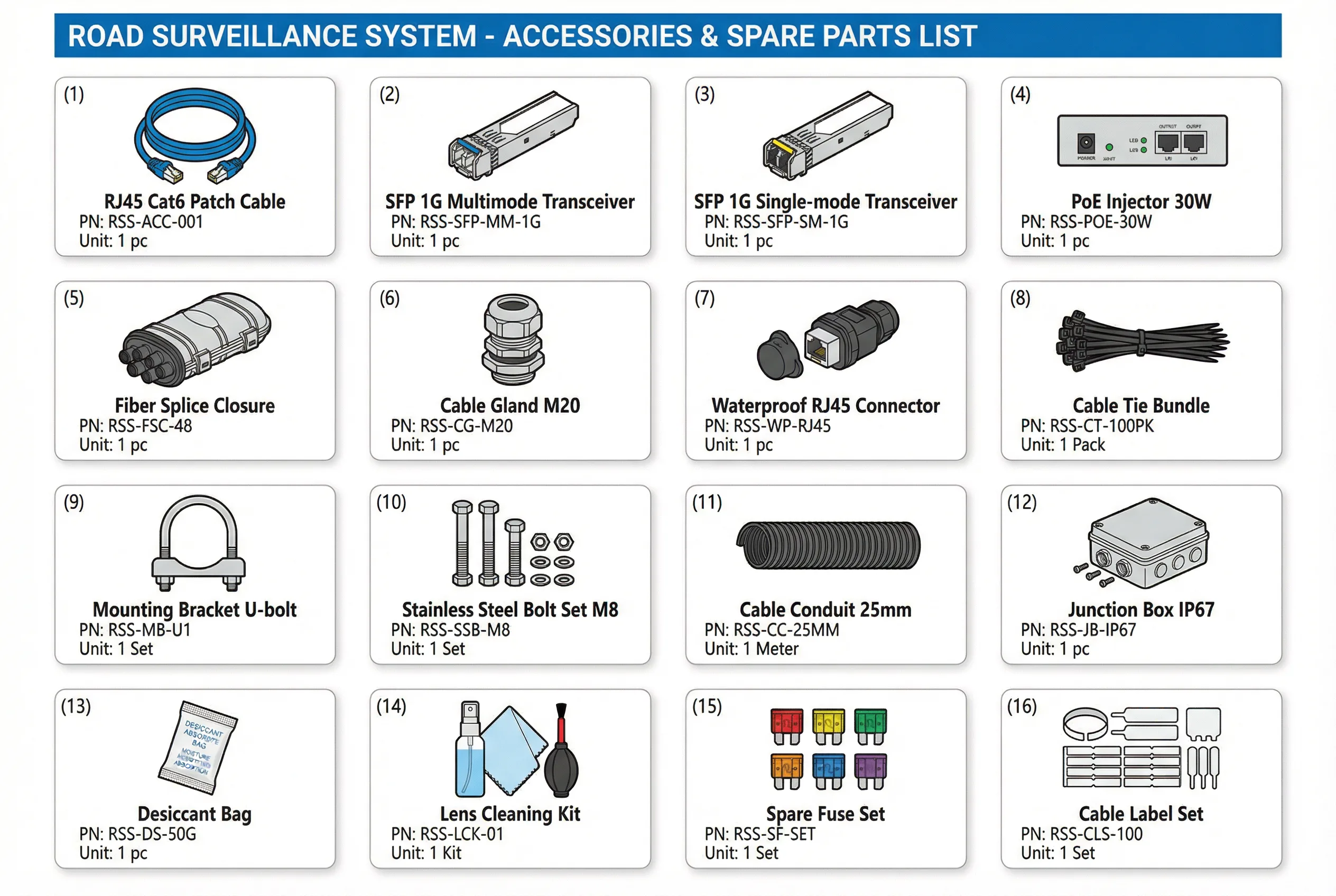

Figure 8.1: Road surveillance system accessories and spare parts visual catalog — 16 items including network cables, SFP transceivers, fiber splice closures, cable glands, waterproof connectors, mounting hardware, cable conduit, junction boxes, and maintenance consumables. Each item shown with part number reference and unit of supply.
8.2 Complete Accessories Bill of Materials
The following table provides the complete accessories bill of materials with specifications, quantities, and procurement notes. Quantities are expressed per surveillance point (one roadside cabinet with four cameras) and must be multiplied by the number of surveillance points in the project.
| # | Item | Part Reference | Specification | Qty/Point | Notes |
|---|---|---|---|---|---|
| 1 | RJ45 Cat6 Patch Cable | RSS-ACC-001 | Cat6; 1–5 m; outdoor rated; UV-resistant | 8 pcs | 2 per camera (camera to switch + spare) |
| 2 | SFP 1G Multimode Transceiver | RSS-SFP-MM-1G | 1000BASE-SX; 850 nm; 550 m; LC | 0–2 pcs | For short fiber runs within facility |
| 3 | SFP 1G Single-mode Transceiver | RSS-SFP-SM-1G | 1000BASE-LX; 1310 nm; 10 km; LC | 2 pcs | For ring uplink (2 per switch) |
| 4 | PoE Injector 30W | RSS-POE-30W | IEEE 802.3at; 30W; 48V DC output | 1 pc | Spare; for cameras without PoE switch |
| 5 | Fiber Splice Closure | RSS-FSC-48 | IP68; 48 splice; inline type; UV-resistant | 1 pc | For fiber cable joint at each node |
| 6 | Cable Gland M20 | RSS-CG-M20 | M20; IP68; nylon; for 6–12 mm cable OD | 8 pcs | For cabinet cable entry points |
| 7 | Waterproof RJ45 Connector | RSS-WP-RJ45 | IP67; Cat6; field-installable; UV-resistant | 8 pcs | For outdoor cable runs not in conduit |
| 8 | Cable Tie Bundle | RSS-CT-100PK | UV-resistant nylon; 200 mm; 100-pack | 1 pack | For cable management in cabinet and pole |
| 9 | Mounting Bracket U-bolt | RSS-MB-U1 | Stainless steel; for 60–76 mm pole OD | 4 sets | 1 per camera; include nuts and washers |
| 10 | Stainless Steel Bolt Set M8 | RSS-SSB-M8 | M8 × 30 mm; A2 stainless; hex head; 10-pack | 2 sets | For cabinet mounting and bracket assembly |
| 11 | Cable Conduit 25 mm | RSS-CC-25MM | HDPE; 25 mm ID; corrugated; UV-resistant | 20 m | For outdoor cable runs from pole to cabinet |
| 12 | Junction Box IP67 | RSS-JB-IP67 | ABS; IP67; 100 × 100 × 50 mm; clear lid | 2 pcs | For cable splices and connectors in field |
| 13 | Desiccant Bag | RSS-DS-50G | Silica gel; 50 g; rechargeable | 4 pcs | 1 per camera housing; replace annually |
| 14 | Lens Cleaning Kit | RSS-LCK-01 | Lens cloth + cleaning fluid + blower brush | 1 kit | For maintenance; replace fluid annually |
| 15 | Spare Fuse Set | RSS-SF-SET | Mixed fuses: 1A, 2A, 5A, 10A; 5 each | 1 set | For cabinet power distribution fuses |
| 16 | Cable Label Set | RSS-CLS-100 | Self-laminating; 100-pack; permanent adhesive | 1 set | For cable identification per labeling standard |
8.3 Installation Tools Required
The following tools are required for the installation and commissioning of a road surveillance system. Tools should be verified as calibrated and in good condition before the start of installation, and the installation team should carry sufficient spares of consumable items such as cable ties and labels.
| Tool Category | Specific Tools | Purpose |
|---|---|---|
| Cable Termination | RJ45 crimping tool; cable stripper; punch-down tool; fiber cleaver; fusion splicer | Terminating Cat6 cables and fiber optic cables |
| Cable Testing | Cat6 cable tester; OTDR (fiber); optical power meter; PoE tester | Verifying cable continuity, attenuation, and PoE power delivery |
| Electrical | Multimeter; clamp meter; earth resistance tester; insulation tester | Verifying power supply, grounding resistance, and insulation integrity |
| Mechanical | Torque wrench (0–50 Nm); drill + bits; angle grinder; level; plumb bob | Mounting hardware installation; pole and bracket alignment |
| Height Access | Extension ladder (8 m); safety harness; hard hat; high-visibility vest | Camera installation at height; safety compliance |
| Commissioning | Laptop with VMS client; network analyzer; IP scanner; camera configuration tool | Camera configuration, network verification, and system commissioning |
8.4 Spare Parts Inventory Recommendations
A well-planned spare parts inventory minimizes system downtime by enabling rapid replacement of failed components without waiting for procurement. The recommended spare parts inventory is based on the failure rates of each component type and the acceptable downtime for each surveillance point. The following table provides the recommended spare parts quantities for a system of 50 surveillance points.
| Component | Expected MTBF | Recommended Stock (50 points) | Replacement Trigger |
|---|---|---|---|
| ANPR Camera | 50,000 h (~5.7 years) | 3 units (6%) | Immediate replacement on failure |
| PTZ Camera | 40,000 h (~4.6 years) | 2 units (4%) | Immediate replacement on failure |
| Industrial PoE Switch | 100,000 h (~11 years) | 2 units (4%) | Immediate replacement on failure |
| UPS Battery | 3–5 years (temperature-dependent) | 5 units (10%) | Replace at 80% capacity or 3 years |
| SFP Transceiver | 100,000 h | 5 units (5%) | Replace on link failure diagnosis |
| IR Illuminator | 30,000 h (~3.4 years) | 5 units (10%) | Replace on illumination failure |
| SPD (AC side) | Replace after lightning event | 5 units (10%) | Replace after any significant lightning event |
